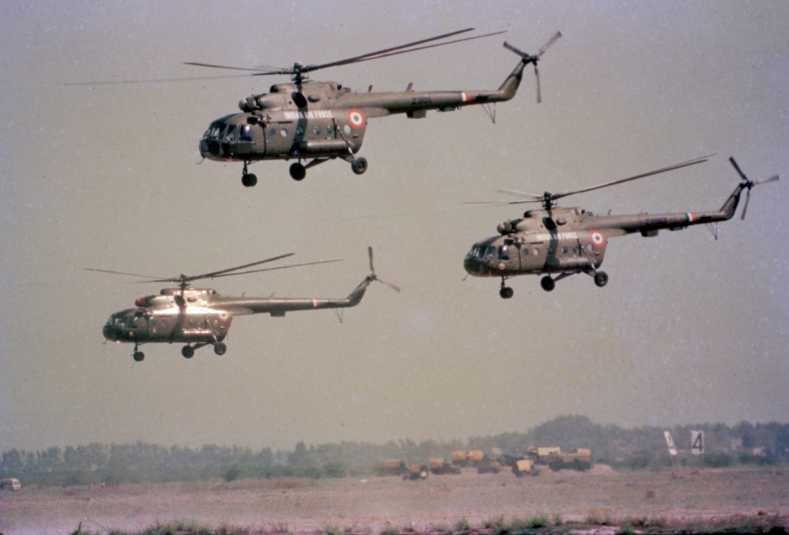

1__20A

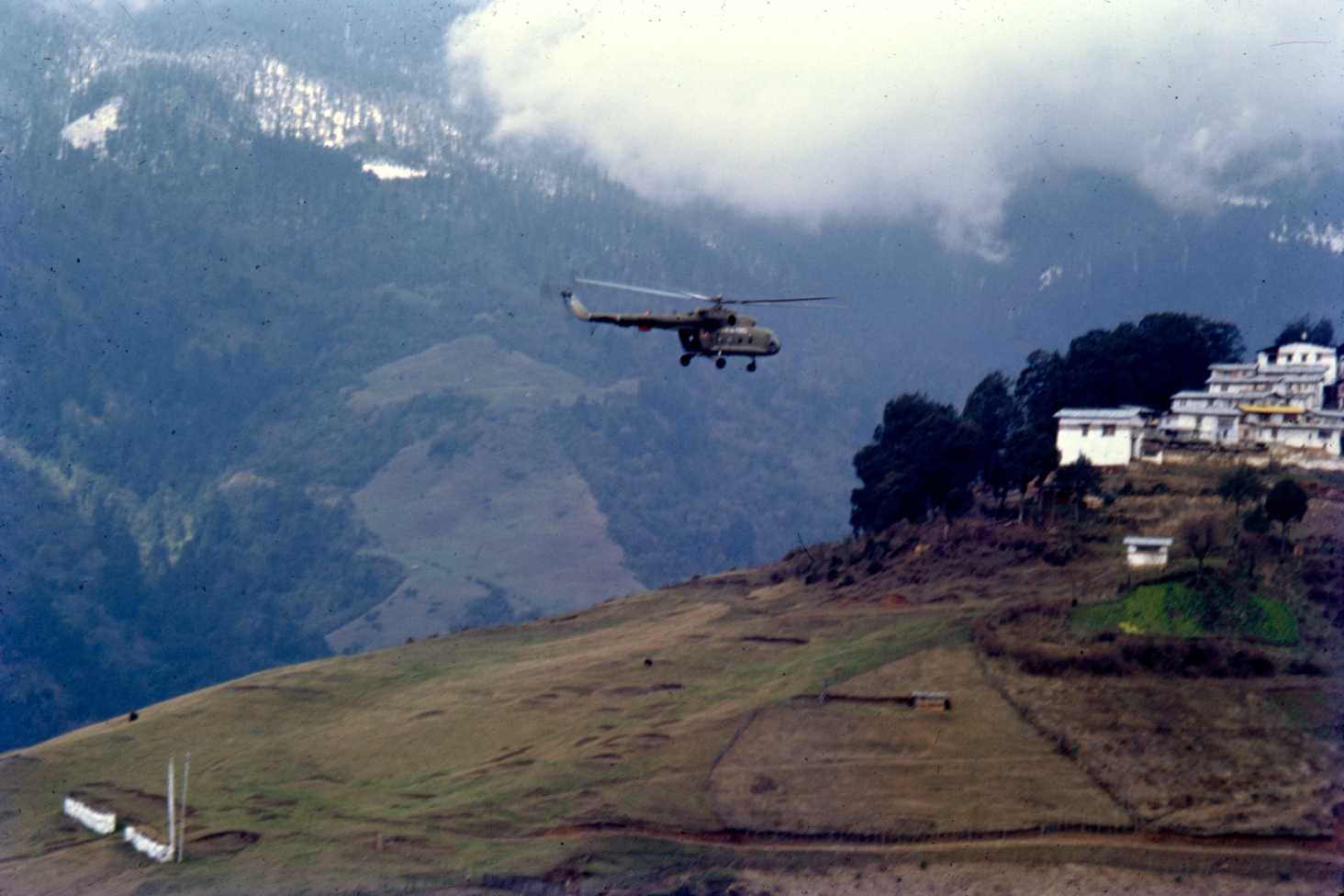

1_33B

IAF helicopter ferring vital equipment and supplies at an off-shore oil rigC

Mi 8 helicopter at KumbigramD

Mil Mi-8 (1)E

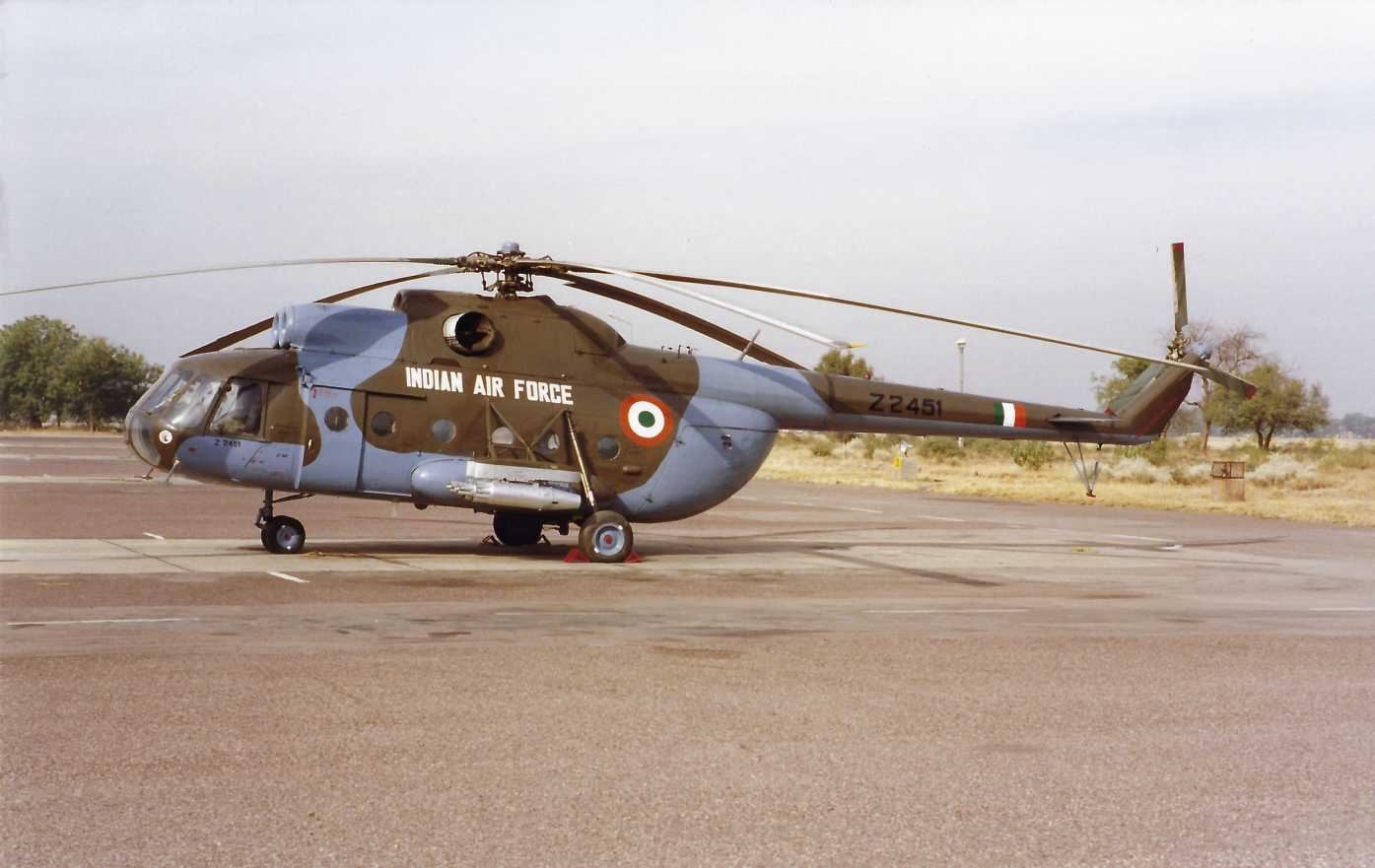

Mil Mi-8 (2)F

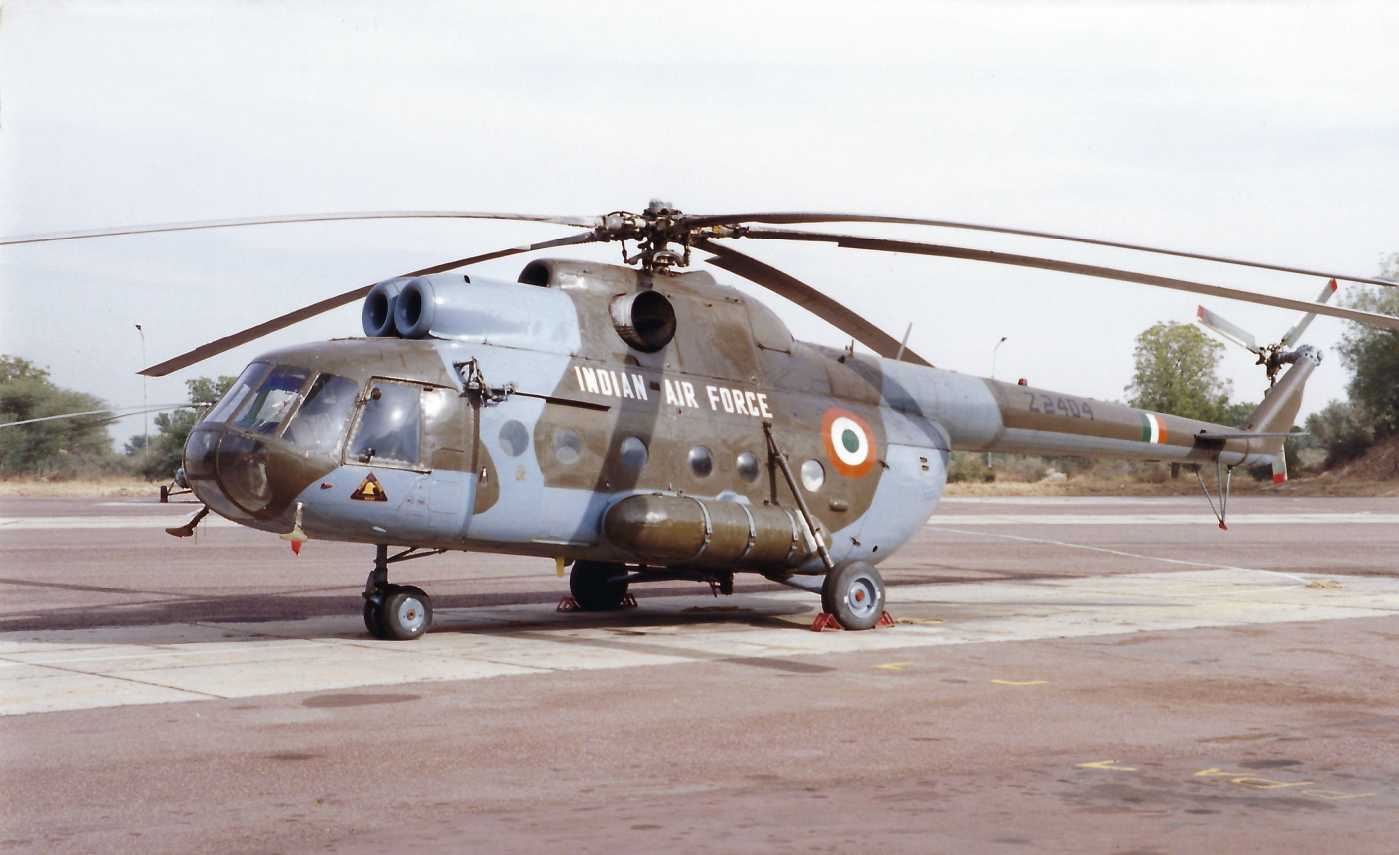

Mil Mi-8G

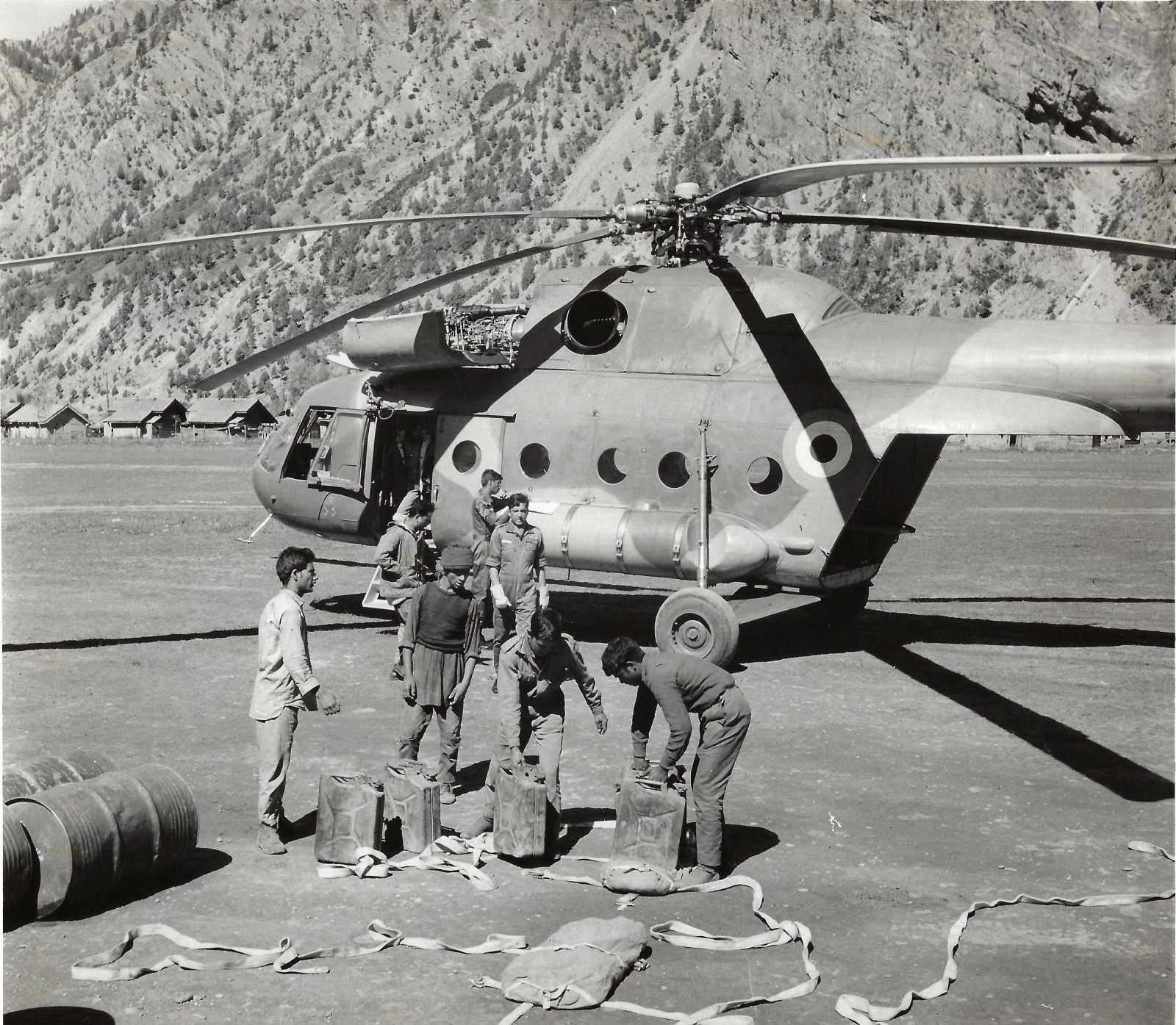

scan7534_editedH

The Mi-8 (General-purpose transport helicopter) has been in continuous production since 1964 for both civil and military tasks. The standard commercial passenger version has a basic flight crew of two or three and 28 four-abreast seats, and the aeromedical version accommodates 12 casualty stretchers and a medical attendant. As a freighter the Mi-8 will carry up to 8,818 lb (4 000 kg) of cargo, and military tasks include assault transport, search and rescue and anti-submarine warfare. The Mi-8 is now operated by several Warsaw Pact air forces, serving primarily in the support transport role, and has been exported to numerous countries, including Finland, Pakistan and Egypt.

Image Information

Country of Origin USSR
Power Plant Two 1,500 shp Izotov TV-2-117A turboshafts.
Performance (At 24,470 lb/11 100 kg) Max speed 155 mph (250 km/h)
Hovering in ceiling (in ground effect) 4900 ft (1 800 m) (out of ground effect), 2625 ft (800 m)
Service ceiling 14,760 ft (4 500 m)
Range with 6,615 lb (3000 kg) of freight, 264 mls (425 km)
Weight Empty (cargo) 15,787 lb (7 171 kg) (passenger) 16,352 lb (7417 kg)
Normal take off 24,470 lb (11 100 kg)
Max take off (for VTO) 26,455 lb (12000 kg)
Dimensions Roto diam, 69 ft 10 ¼ in (21,29 m)
Fuselage length 59 ft 7 1/.3 in (18,17m)
