Dassault Falcon 50

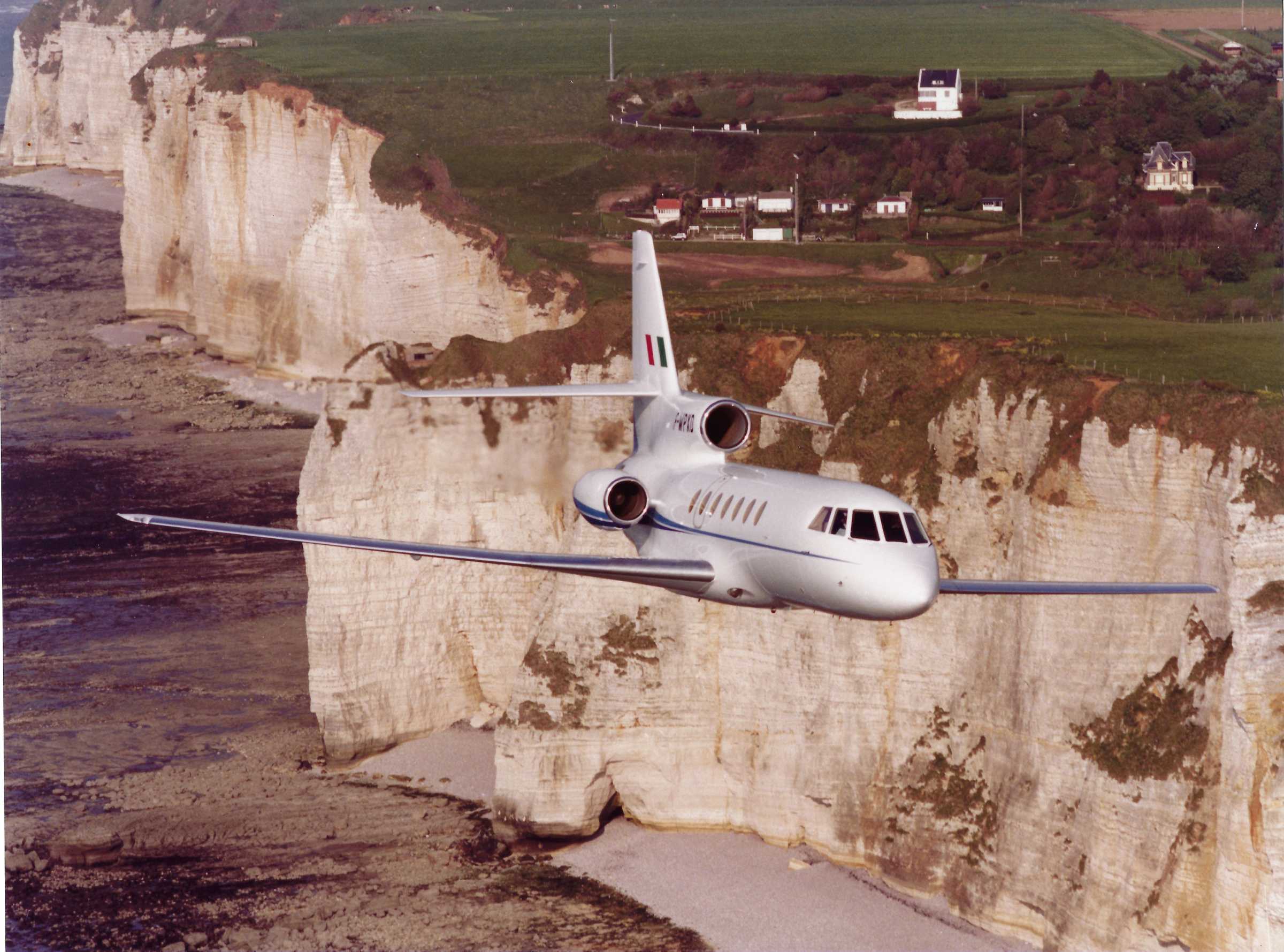

Falcon 50 Photo 1 - Dassault Aviation low

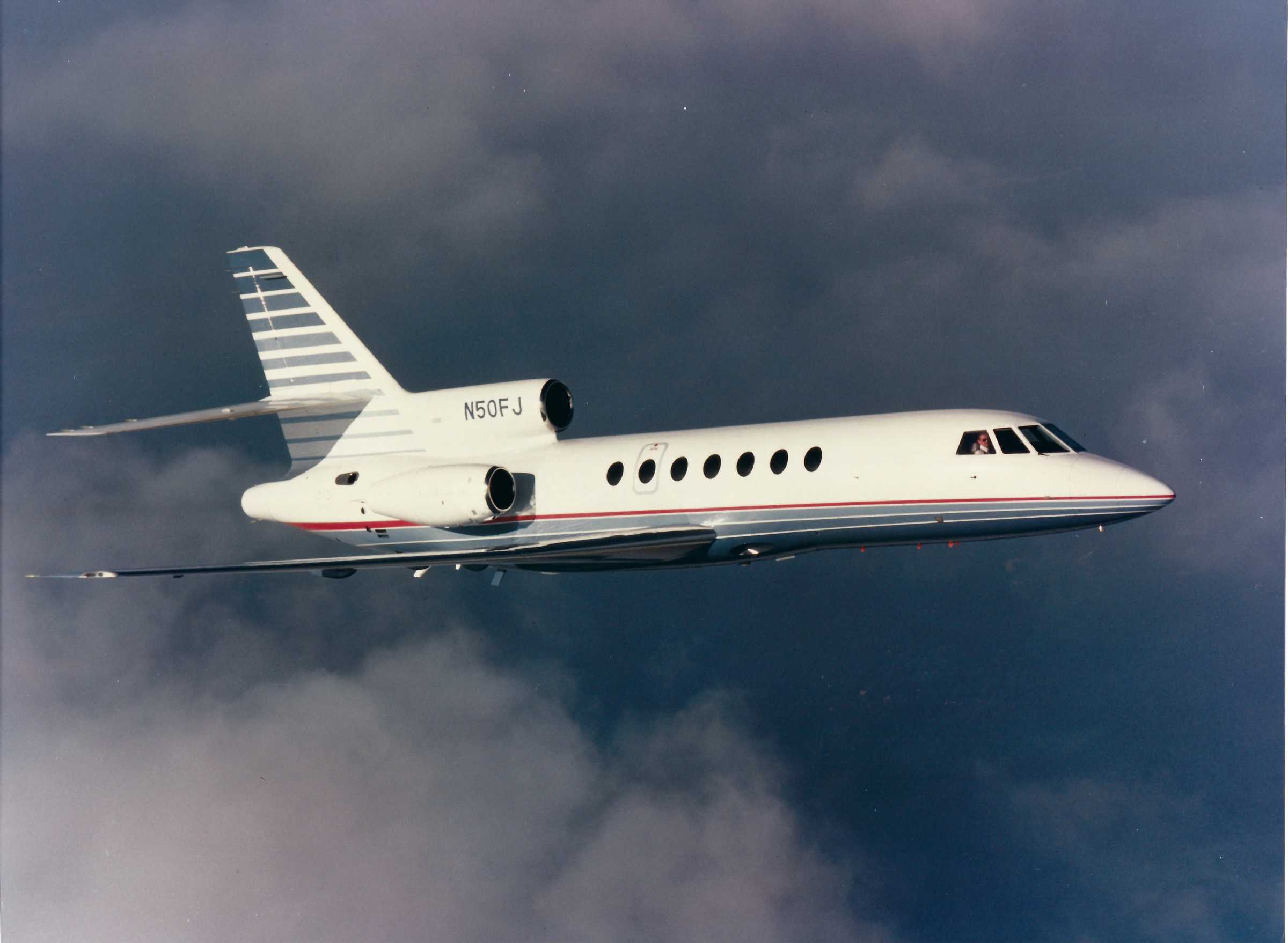

Falcon 50 is a three engine long range business jet designed for 8 - 12 passangers. Photo - Dassault Aviation low

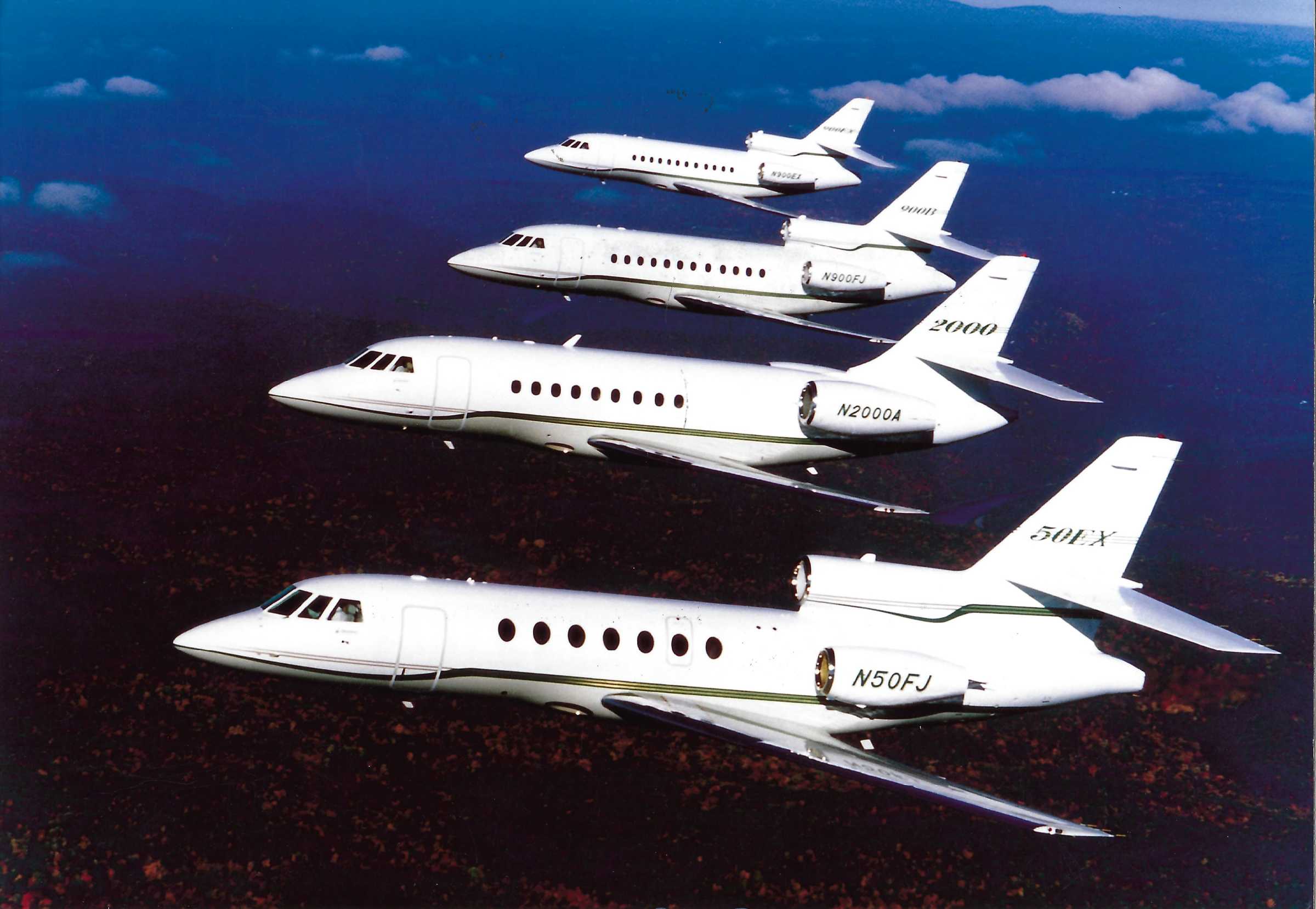

Falcon 50EX - 2000 - 900B - 900EX. Photo - Aerospatiale matra. Credit. F. Robineau low

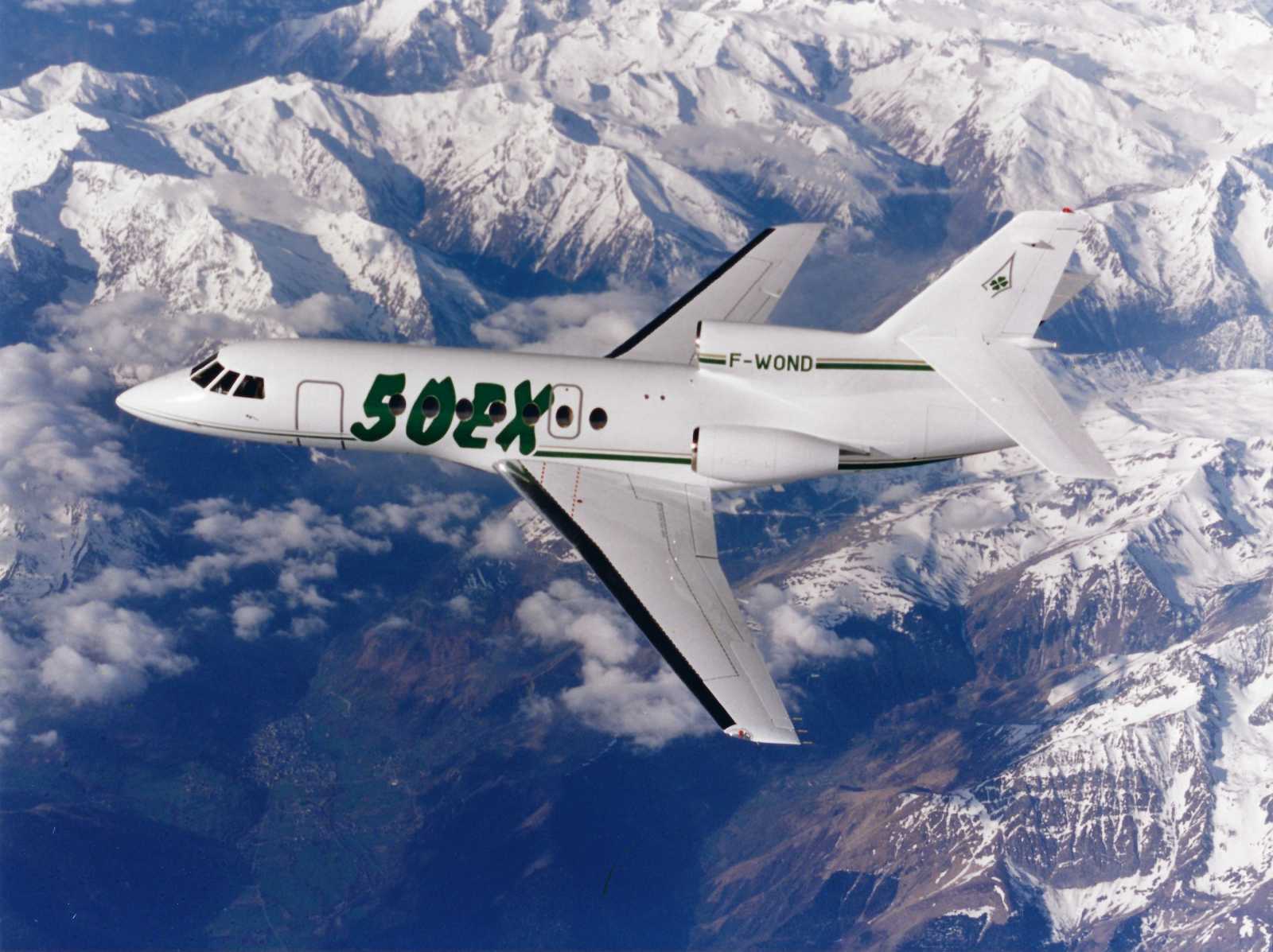

Dassault Falcon 50EX low

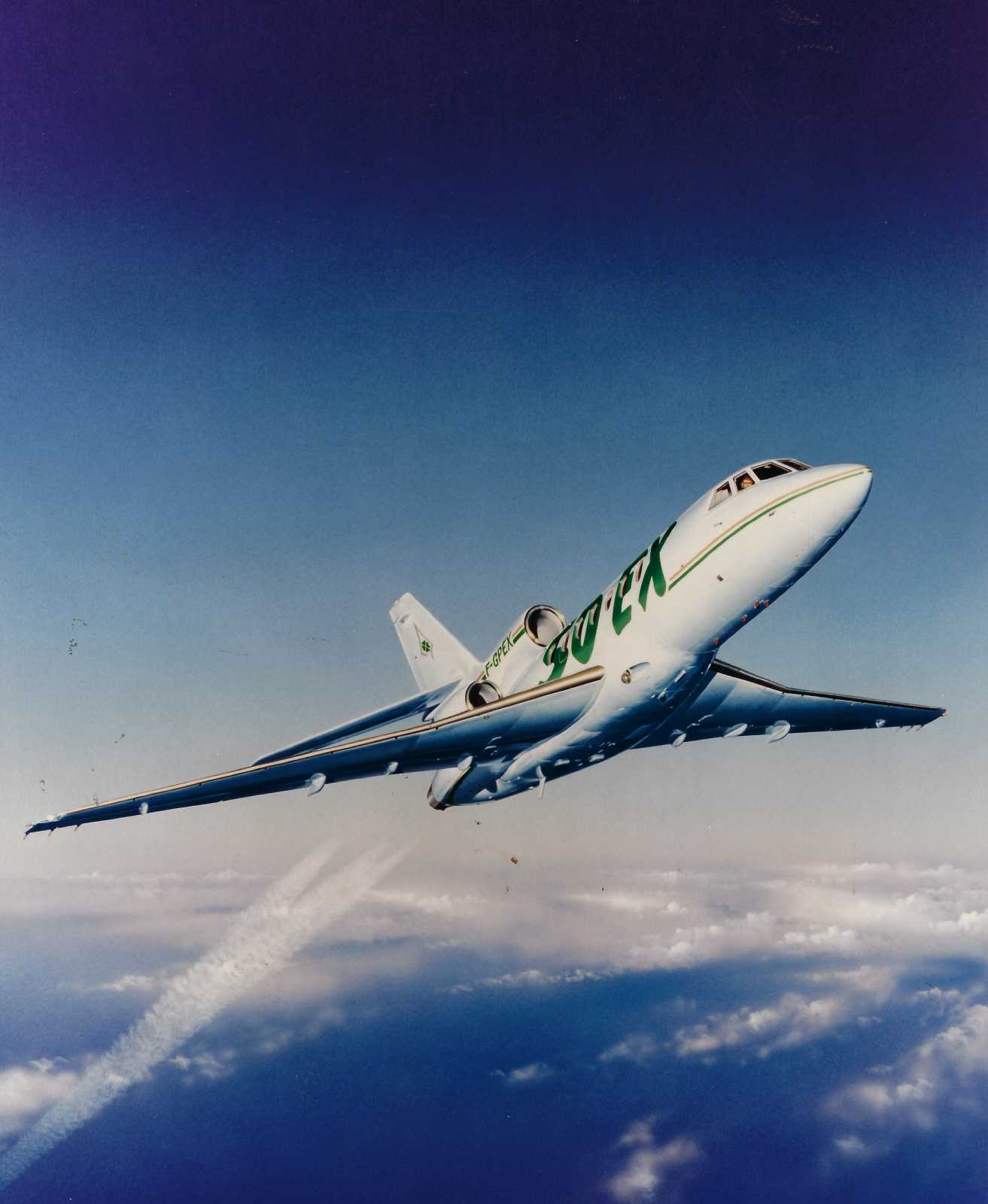

Falcon 50EX. Photo - Dassault Aviation low

The Falcon 50 is basically a Falcon 20 Series F fuselage, wing and horizontal tail (see 1974 edition) married to revised vertical tail surfaces fairing in to a dorsally-mounted engine and a revised and lengthened tail once. The wing is located farther aft in relation to the centre fuselage, an additional fuel tank is provided between the cabin and the rear baggage compartment, and the under-carriage, while similar to that of the Falcon 20, has been strengthened to cater for higher all-up weights. Prototype scheduled to fly during November 1975 with second in October 1976, and first production deliveries anticipated for mid-1977.

Image Information

Country of origin France
Power Plant Three 3,700 lb (1 678 kg) Garrett-AiResearch TFE 731-3 turbofans.
Performance Max cruise 541 mph (870 km/h)
range cruise 497 mph (800 km.h)
Weight Empty equipped 19,180 lb (8,700 kg)
max take-off 36,375 lb (16 500 kg)
Dimensions Span 53 ft 6 /12 in (16.32 m)
Length 64 ft 5 1/4 in (19.64 m)
Height 21 ft 2 1/2 in (6.46 m)
Wing area 441.32 sq ft (41.0 m2)
